Computer Hardware
Mother Board
System Chipset Intel X670 Support PCIE 5.0, Digital HD Audio 7.1, USB 3.2 Type-C
Specification
Supported CPU
CPU Socket Type  AM5
CPU Type support for: AMD Ryzen™ 7000 Series Processors
Chipsets
Chipset  AMD X670
Memory
Number of Memory Slots 4x288pin (DDR5)
Memory Standard Support for DDR5 5200/4800/4400 MHz memory modules
Maximum Memory Supported Up to 128 GB (32 GB single DIMM capacity)
Channel Supported  Dual Channel
ECC Supported Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Expansion Slots
PCI Express 4.0 x16 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Other Slots Chipset:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2)
Support for AMD CrossFire™ technology (PCIEX16 and PCIEX4)
Storage Devices
SATA 6Gb/s  4 x SATA 6Gb/s
M.2 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB, M2D_SB)
SATA RAID RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Onboard Audio
Audio Chipset  Realtek® Audio CODEC
Audio Channels  High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Onboard LAN
Max LAN Speed Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless LAN AMD Wi-Fi 6E RZ616 (MT7922A22M)
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.2
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
(Actual data rate may vary depending on environment and equipment.)

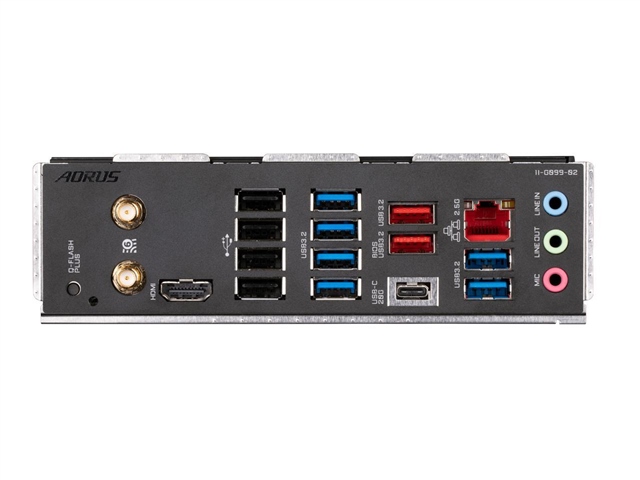

Rear Panel Ports
Back I/O Ports 1 x Q-Flash Plus button
2 x SMA antenna connectors (2T2R)
1 x HDMI 2.0 port
6 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
2 x USB 3.2 Gen 2 Type-A ports (red)
1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
1 x RJ-45 port
3 x audio jacks
Internal I/O Connectors
Other Connectors 1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x water cooling CPU fan header
3 x system fan headers
1 x CPU cooler LED strip/RGB LED strip header
2 x addressable LED strip headers
2 x RGB LED strip headers
4 x SATA 6Gb/s connectors
4 x M.2 Socket 3 connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
2 x USB 3.2 Gen 1 headers
2 x USB 2.0/1.1 headers
1 x THB_U4 add-in card connector
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x power button
1 x reset button
1 x Clear CMOS button
1 x reset jumper
1 x Clear CMOS jumper
Physical Spec
Form Factor ATX
LED Lighting 30.5cm x 24.4cm
Windows 11 Compatibility
Windows 11 Support for Windows 11 64-bit
Support for Windows 10 64-bit

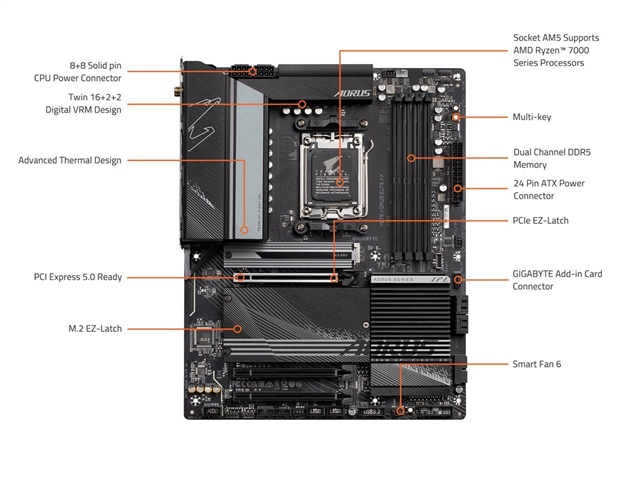

Features
Features AMD Socket AM5:Supports AMD Ryzen™ 7000 Series Processors
Unparalleled Performance:Twin 16+2+2 Phases Digital VRM Solution
Dual Channel DDR5:4*DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
Next Generation Storage:1*PCIe 5.0 x4 and 3*PCIe 4.0 x4 M.2 Connectors
Mega-Heatpipe & M.2 Thermal Guard:To Ensure VRM Power Stability & 25110 PCIe 5.0 M.2 SSD Performance
EZ-Latch:PCIe x16 Slot & M.2 Connectors with Quick Release & Screwless Design
Fast Networks:2.5GbE LAN & Wi-Fi 6E 802.11ax
Extended Connectivity:HDMI, Dual USB-C® 20Gbps and Upcoming GIGABYTE USB4 AIC Support
Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card
Packaging
Package Contents Antenna included.
Image viewer
Video viewer
Price $294.00
